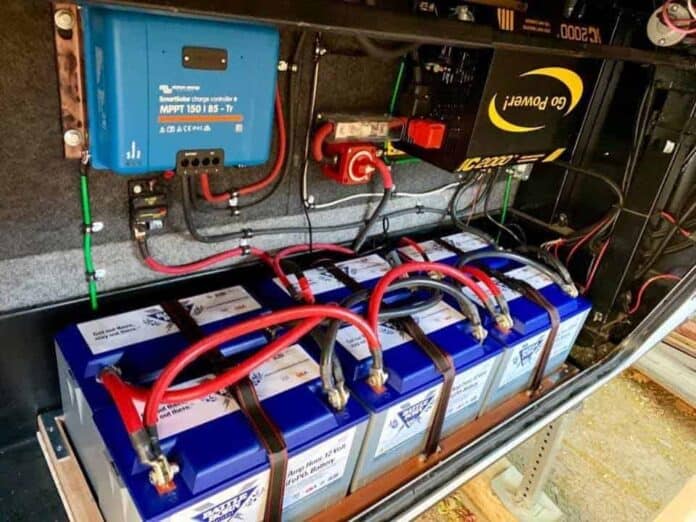

How to Hook Up RV Batteries in Parallel: Simple and Efficient Expert Guide

- Advertisement -

Introduction

Welcome to the ultimate guide on learning how to hook up RV batteries in parallel! If you plan to extend your off-grid adventures or want more energy storage for your travel trailer, understanding how to connect your batteries properly is essential. In this comprehensive article, we’ll walk through everything you need to know to get this set up right, starting from the reasons you might want parallel connections, the materials and tools you’ll need for the job, step-by-step instructions on how to do it, and finally some essential safety tips and maintenance advice to ensure your setup serves you well over time.

Understanding Series Connection

When connecting RV batteries in series, you link their positive terminals to negative terminals, increasing overall voltage. For instance, if you connect two 12-volt AGM batteries in series, the total voltage of the batteries together in series becomes 24 volts. 12-Volt batteries in series can be beneficial in scenarios where higher voltage is required for specific RV appliances or systems. However, it’s crucial to carefully assess your RV’s electrical system compatibility with the increased voltage. Wiring RV batteries in series should be part of a thoughtful design to ensure seamless integration and effective power management for your RV adventures.

Understanding Parallel Connections

Parallel connection refers to an electrical circuit configuration where components are connected across the same voltage points. This setup means the voltage is constant across all components, but the total current is the sum of the currents through each component.

In robotics, and especially recreational vehicles (RVs), parallel connections are essential for managing the energy distribution from the power source, such as a battery bank, to various subsystems. Parallel wiring allows multiple appliances and systems to operate independently without affecting each other’s performance. It is common in RVs to use parallel connections for energy storage systems to increase the available amp-hour capacity while keeping the voltage constant, which is crucial for ensuring the proper operation of onboard electronics and appliances.

For instance, if an RV has multiple 12-volt batteries connected in parallel, the total output will still be 12 volts. Still, the capacity (amp-hours) will increase, allowing for longer use of appliances before the batteries need to be recharged. This is essential for RV owners who spend extended periods off-grid and require a reliable power supply. Moreover, solar panels are often connected in parallel to provide a consistent charge to the battery bank without over-voltage, which is essential for the longevity of the RV battery and the system’s safety.

Overall, parallel connections are integral to the efficient design of an RV’s electrical system. They help maintain consistent voltage levels, provide flexibility in the power system’s design, and ensure that power is available to multiple systems simultaneously. Thus, any RV traveler must learn to hook up RV batteries in parallel.

Benefits of Parallel Connection

The advantages of parallel wiring RV batteries over wiring them in series are numerous. They include increased amp-hour capacity, which translates to longer usage time for your devices and appliances, and redundancy, ensuring that if one battery fails, the system can still function with the remaining RV batteries.

Parallel connection is a common practice for increasing the power storage system’s available amp-hour (Ah) capacity while maintaining the same voltage. This configuration involves connecting the positive terminals of two or more volt batteries and the negative terminals.

The primary benefit of a parallel connection is the increased total capacity, which directly translates to a more extended power supply duration before needing recharging. This can be particularly advantageous for RV users who require more power for extended off-grid camping or for powering numerous or high-consumption devices.

Another advantage of parallel battery configurations is redundancy. When two batteries are connected in parallel, if one fails, the other can still provide power, albeit at a reduced total capacity. This redundancy can provide security and reliability, ensuring that some power will be available even if one battery goes out of service.

Moreover, a parallel connection can also contribute to a more balanced discharge and recharge of the batteries. When batteries are used and charged as a group, they tend to even out each other’s charge states, leading to more uniform usage and potentially longer overall battery life.

Lastly, it’s important to remember that while amplifying the total Ah capacity, one must ensure that the connected batteries are of the same type, age, and capacity to prevent an imbalance in the charging and discharging cycles, which can detrimentally affect battery performance and lifespan. Also, proper maintenance and regular monitoring are necessary to ensure the system operates safely and effectively.

Steps: How to Hook Up RV Batteries in Parallel

Gather necessary tools

When learning how to hook up RV batteries in parallel, begin by assembling the required tools for the task. This includes safety gear like gloves and goggles to protect against potential hazards. Ensure you have appropriate wiring, preferably thick-gauge cables suitable for the current flow between RV batteries. A wrench set is essential for tightening connections, and a multimeter is necessary for testing. Confirm that all tools are in good condition and well-suited for the job.

I recommend a battery box or boxes as a great addition to your battery setup because they keep moisture and road contaminants away from your batteries.

Identify positive and negative terminals.

Understanding the battery terminals is crucial when learning how to hook up RV batteries in parallel. Locate each battery’s positive (+) and negative (-) terminals. These terminals are pivotal for correct connection and are typically marked with symbols or colored red (positive) and black (negative). Ensure a clear identification of these terminals before proceeding.

Connect positive terminals

  • Inspect the Cable: Check the condition of the cable you plan to use. It should be of sufficient gauge to handle the current flow and be free from any damage, such as cuts or fraying.
  • Prepare the Terminals: Clean the positive terminals on each battery using a battery terminal brush. This step removes any corrosion or oxidation, ensuring a solid electrical connection.
  • Connect the Cables: Place one end of the cable onto the positive terminal of the first battery and secure it tightly using a wrench. Subsequently, connect the other end to the positive terminal of the second battery (or any additional batteries in the parallel configuration) and secure it tightly.
  • Check for Tightness: Confirm that all connections are secure. Tighten the connections adequately to prevent electrical resistance, which could lead to overheating.
  • Inspect for Corrosion: Ensure there is no corrosion on the positive terminals. If corrosion is present, clean it with a mixture of baking soda and water to maintain optimal conductivity.
  • Repeat for Additional Batteries: If connecting more than two RV batteries, repeat the process, ensuring a secure connection between the positive terminals of each battery.
  • Secure the Cable: Once all connections are made, secure the cable along a safe path, away from moving parts and potential damage.

Connect negative terminals

Similarly, link the negative terminals using another cable. Again, check for a firm connection and clean contact points.

Test the connection

Test the overall voltage with your multimeter to ensure it matches the voltage of a single battery. This indicates a successful parallel connection.

  • Use the Multimeter: Set the multimeter to measure voltage. Place the probes on the positive and negative terminals of the entire battery bank.
  • Check for Consistent Voltage: The measured voltage should be consistent with the voltage of a single battery. This confirms a successful parallel connection.
How to Wire Dual Camper Batteries🔋In Parallel

Safety Precautions

Now that we know how to hook up RV batteries in parallel, let’s talk safety. Working with electrical systems, especially when dealing with lead-acid batteries, can be hazardous. To minimize risks, follow these precautions closely.

Importance of safety gear

Safety gear plays a critical role during the process of hooking up batteries for several reasons:

  1. Electrical Safety: Batteries can deliver a high current if short-circuited, which poses a risk of electrical shock or burns. Protective gloves and insulating tools help mitigate this risk by preventing direct contact with the battery terminals.
  2. Chemical Safety: Batteries contain corrosive chemicals like sulfuric acid and produce hydrogen gas during charging, which is flammable. Safety goggles protect the eyes from splashes, and working in a well-ventilated area reduces inhalation risks.
  3. Fire Safety: Sparks can lead to fires or explosions, especially in the presence of hydrogen gas. Therefore, it is essential to use non-sparking tools to ensure the area is free from flammable materials.

Adhering to these safety guidelines and using appropriate gear can minimize the risks associated with parallel connections.

Avoiding short circuits

In a parallel connection, the goal is to increase the amp-hour (Ah) capacity while maintaining the same voltage. This process implies connecting the positive terminals of all batteries and the negative terminals. However, this increases the risk of short circuits, which can occur if a conductive material unintentionally bridges the electrical path between high and low potential, leading to excessive current flow that can cause damage or even fire. To mitigate the risk of short circuits, double-check your connections and keep tools and other metallic objects away from exposed terminals.

Troubleshooting Common Issues

Even with careful planning and knowing everything about hooking up RV batteries in parallel, issues can arise. Let’s review some common problems and how to address them.

Checking battery voltages

Monitoring battery voltages is crucial as it provides insights into the overall health and performance of your RV’s electrical system. If there are significant discrepancies in voltage levels among connected batteries, it may indicate an underlying issue.

How to Check:

  • Use a multimeter set to measure voltage.
  • Place the probes on each battery’s positive and negative terminals in the parallel configuration.
  • Note the voltage readings for each battery.

What to Look For:

Voltages should be within a close range of each other. A significant deviation may indicate a faulty or failing battery.

Addressing the Issue:

  • If there’s a considerable voltage difference, individually test each battery to identify the problematic one.
  • Replace batteries with consistently low voltage readings to maintain a balanced and efficient electrical system.

Inspecting connections for loose wires

Why it’s Important:

  • Loose connections can increase electrical resistance, resulting in poor performance, overheating, or even electrical fires. Regular inspections help maintain secure and reliable connections.

How to Check:

  • Inspect all cable connections between batteries, ensuring they are tight and secure.
  • Use a wrench to tighten any loose connections.

What to Look For:

  • Loose or corroded connections may be visually apparent. Inspect both positive and negative terminals for any signs of damage or wear.

Addressing the Issue:

  • Tighten any loose connections immediately using a wrench.
  • Clean corroded terminals with a battery terminal brush and apply a small amount of anti-corrosion spray.

Seeking professional help if needed

Navigating electrical systems, especially in an RV, can be complex and potentially hazardous. While DIY enthusiasts may be inclined to tackle electrical projects themselves, it’s essential to recognize the limits of one’s expertise and when it’s appropriate to seek professional assistance.

Here are some reasons why seeking professional help is crucial when dealing with how to hook up RV batteries in parallel and RV electrical systems in general, especially during troubleshooting:

  • Safety Concerns: Electrical systems, including RV battery setups, pose inherent risks such as electrical shock, burns, and even fires if mishandled. Professionals are trained to understand and mitigate these risks effectively, ensuring the safety of both the individual and the RV.
  • Complexity of Systems: RV electrical systems can vary significantly in complexity, depending on factors like the size of the RV, the number of appliances and devices, and the integration of renewable energy sources like solar panels. Professional electricians have the expertise to navigate these complexities and diagnose issues accurately.
  • Compliance with Codes and Standards: Electrical work in RVs must comply with relevant codes and standards to ensure safety and legality. Professionals are well-versed in these regulations and can ensure that all work meets the requirements, reducing the risk of non-compliance issues down the line.
  • Prevention of Further Damage: Incorrect troubleshooting or repair attempts by untrained individuals can potentially exacerbate existing issues or cause new problems within the electrical system. Professionals have the knowledge and experience to identify underlying issues accurately and implement appropriate solutions, minimizing the risk of further damage.
  • Time and Cost Efficiency: While DIY approaches may seem cost-effective initially, they can become more costly and time-consuming in the long run if mistakes are made or professional intervention is necessary to rectify errors. Hiring a professional from the outset can save time and money by ensuring the job is done right the first time.
  • Warranty Considerations: Many RV components, including electrical systems and appliances, may be covered by warranties that require professional installation or repair for the warranty to remain valid. Attempting DIY repairs could void these warranties, potentially leading to significant financial consequences.
  • Peace of Mind: Ultimately, seeking professional assistance provides peace of mind, knowing that the electrical system has been inspected, repaired, or installed by a qualified expert. This confidence allows RV owners to enjoy their travels without worrying about the reliability or safety of their electrical setup.
  • In summary, while DIY projects can be fulfilling and cost-effective in many cases, electrical work within an RV is an area where professional expertise is often necessary to ensure safety, compliance, and effectiveness. When in doubt or uncomfortable with the complexities of RV electrical systems, it’s always best to err on the side of caution and seek the assistance of a qualified electrician or RV technician.
  • Assistance is crucial when in doubt or uncomfortable with the troubleshooting process for hooking up RV batteries in parallel.

How to Hook Up RV Batteries in Parallel: Summary

Understanding how to connect RV batteries in parallel is crucial for any RV enthusiast looking to maximize their off-grid adventures or ensure reliable power for the coach. By harnessing the benefits of parallel connections, such as increased amp-hour capacity and redundancy, you can enhance the efficiency and reliability of your RV’s electrical system.

I’ve covered the fundamentals of parallel connections, including the differences between series and parallel configurations, the benefits of parallel wiring, and the step-by-step process of connecting batteries in parallel. I’ve highlighted essential safety precautions and provided troubleshooting tips to address common issues that may arise during the setup or maintenance of parallel connections.

It’s essential to approach hooking up RV batteries in parallel with careful planning and attention to detail. This includes selecting suitable materials and tools for the job, identifying battery terminals correctly, and ensuring secure connections to prevent electrical resistance and potential hazards like short circuits or fires.

Moreover, regular maintenance and monitoring of your parallel battery setup are crucial for ensuring optimal performance and longevity. This includes checking battery voltages, inspecting connections for signs of damage or wear, or seeking professional assistance to address any issues effectively.

Following the guidelines outlined in this comprehensive guide and prioritizing safety and maintenance, you can create a robust parallel battery configuration that provides reliable power for your RV adventures. Whether you’re boondocking in remote locations or enjoying the comforts of your travel trailer, a well-designed and adequately connected battery system will ensure you have the energy you need to make the most of your travels.

In summary, connecting RV batteries in parallel offers numerous benefits, including increased capacity, redundancy, and flexibility, making it an essential aspect of optimizing your RV’s electrical system. With the knowledge and understanding of how to hook up RV batteries in parallel gained from this guide, you can confidently embark on your off-grid adventures, knowing that your power supply is in good hands.

If you are configuring a battery bank and don’t have a good idea of the battery sizes you need, you can use our handy RV Battery Size Calculator to determine them.

Also, here are my suggestions for the best RV Deep Cycle Batteries to use in your bank:

I hope you found my guide on hooking up RV batteries in parallel connections helpful. If you have any comments on improving the guide for other RV owners, please comment below, and I’ll consider any suggestions. Thanks for reading.
