Confidently and Easily Wind the Torsion Springs on an RV Awning Like an Expert in 4 Steps

- Advertisement -

Introduction

Torsion springs on RV awnings are critical components that help the awning open and close smoothly. If these aren’t wound correctly, you may face a malfunctioning awning that can ruin your outdoor experience. Proper winding ensures the longevity of the mechanism and your safety and that of others around you.

But what is “Awning?”

It’s usually made of materials like canvas or vinyl which is resistant to weather elements and designed to provide shade and protection from rain or light weather conditions. It serves as an extension of the living space, allowing users and families to comfortably enjoy the outdoors while being close to their vehicles.

Awning in the context of RVs refers to a secondary covering attached to the exterior wall of the vehicle.

Most RV awnings are retractable, meaning they can be extended out to provide shade and retracted back into a storage position when not in use or while the RV is in motion. This is good for home improvement but RV style. Because of this, Some awnings are manual, requiring physical effort to extend and retract, while others are motorized for easier operation. Awnings can come in various sizes, shapes, and designs, often offering options for additional side screens or panels to enclose the space for more privacy or protection against insects.

Given their utility in enhancing the outdoor living space, awnings are a popular feature for many RV owners. They provide a comfortable, shaded area which can make the camping or traveling experience more enjoyable, especially in sunny climates.

However, maintenance considerations involve cleaning the fabric, ensuring the mechanical components function properly, and repairing any tears or damage to prevent leaks or future failures.

Importance of Properly Winding Torsion Springs on RV Awnings

The importance of winding torsion springs properly cannot be overstated. Incorrect winding can lead to excessive wear and tear, and in some cases, the awning could snap back unexpectedly, potentially causing injury. Understanding how to wind these springs correctly is essential for every RV owner.

Benefits of Doing It Like an Expert

When you master the technique of winding torsion springs, you save time and money on potential repairs and maintenance. Additionally, you gain peace of mind knowing that your awning will function reliably, providing shade and protection for your outdoor activities.

Understanding Torsion Springs on RV Awnings

Explanation of Torsion Springs

Torsion springs are tightly coiled metal springs that store mechanical energy when twisted. When you operate your RV awning, these springs exert force to assist in its movement. They work by twisting along their axis to provide torque or rotational force.

To expand on this, torsion springs in the context of recreational vehicles are commonly associated with the suspension system, specifically in torsion axle suspension. In such systems, the torsion springs are an integral component that helps to absorb and dissipate the forces resulting from road irregularities, offering a smoother ride. The springs themselves work on the principle of torsion, or twisting motion: they are designed to resist twist or rotationally applied forces.

When a torsion spring is used in an RV’s torsion axle system, it consists of a rubberized compound or other flexible material encased in the axle tubing that twists around its axis to provide suspension. As the vehicle encounters bumps or dips in the road, the wheel moves upward, and this motion applies a torsional force to the spring. The torsion spring’s resistance to this twisting action provides the counteracting force that cushions the vehicle and its occupants from the impact. It’s a critical part of the suspension system because it helps to maintain stability and control, especially important in larger vehicles like RVs which have different center of gravity considerations compared to regular passenger vehicles.

The unique aspect of torsion spring suspension is that it allows for independent suspension of the wheels on an axle, which can provide improved handling characteristics over bumpy or uneven terrain. This independence means that a disturbance on one wheel does not cause a direct disturbance on the opposite wheel, allowing for a less disrupted driving experience.

Safety Precautions to Keep in Mind

Handling torsion springs comes with risks due to the stored energy. Always wear protective gear like gloves and eyewear. Ensure the RV is parked and stable. Never place your face or body near the springs while adjusting tension, as sudden release of energy can cause injury. However, here is a short comprehensive list of what to do if one is injured by dealing with the awning springs.

When dealing with an injury caused by torsion springs It’s important to note that the response could range from basic first aid to emergency medical care.

how to use torsion springs
Photo by energepic.com on Pexels

First aid can be applied on-site for a minor injury (e.g., a bruise or a slight abrasion). This would involve cleaning the wound with mild soap and water, applying an antibiotic ointment, and covering it with a sterile bandage. If necessary, over-the-counter pain relief medication can be taken. It is also advisable to monitor the wound for signs of infection, which include increased pain, redness, swelling, or a discharge of pus.

In the case of more serious injuries, such as deep lacerations, or puncture wounds, or if there is a suspicion that a bone might be fractured, immediate medical attention is required. The person administering first aid should apply pressure to stop any bleeding and then seek professional medical help without delay. If the injured person is in shock, keeping them warm and in a supine position (lying on their back) is important while waiting for medical personnel. It’s crucial not to attempt to realign any suspected dislocation or fracture, as this can cause further damage.

If the injury is to the eye or involves a high degree of force, there is a risk of more serious complications. Injuries to the eye should be treated as emergencies, and immediate medical care is necessary. Likewise, any sudden, severe pain or inability to move a limb after such an incident warrants an emergency medical response.

After any injury involving torsion springs, it is important to analyze the incident to prevent future occurrences. Safety mechanisms may need to be put in place, and individuals who handle such equipment might require additional training.

Remember, the first priority is always to assess the injury and seek appropriate medical treatment, applying first aid as a temporary measure until professional care is available.

Step-by-Step Guide to Winding Torsion Springs

Step 1: Gather Necessary Tools and Equipment

Before starting, gather all necessary tools including winding bars, wrenches, and a ladder. Make sure the tools are suitable for the specific model of your RV awning. Having the right tools on hand will make the process smoother and safer.

Step 2: Locate the Torsion Springs on Your RV Awning

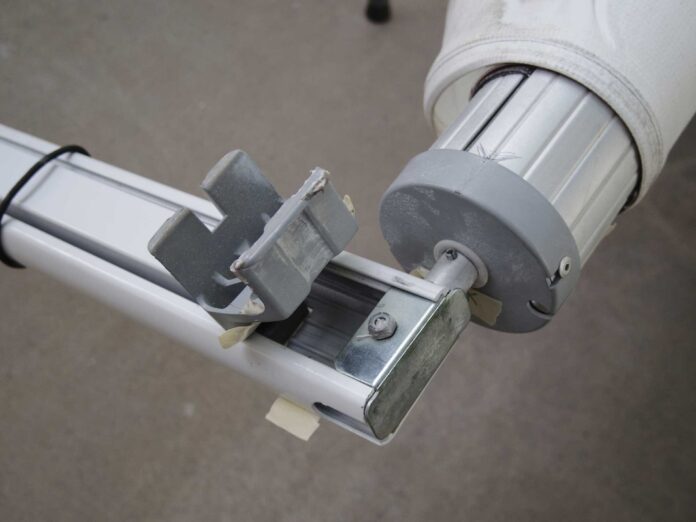

The torsion springs are located at each end of the awning roller tube. Carefully remove any protective caps or covers. Familiarize yourself with the winding mechanism, noting where to insert the winding bars.

When searching for an awning roller tube and its accompanying winding mechanism, it’s important to first understand the specific type of awning you are dealing with since the design and components can vary significantly. Awnings can be manual or motorized, and their mechanisms are designed differently based on their method of operation.

For a manual awning, the roller tube is typically a cylindrical bar that the awning fabric rolls around, and the winding mechanism is often a hand-operated tool or gear system that enables the user to extend or retract the awning. If looking for these parts, consider whether you are replacing an existing system or installing a new one. For replacements, examining the current setup provides crucial information regarding the size, shape, and connection types of the tube and mechanism needed.

To find the roller tube and winding mechanism:

  1. Identify the brand and model of your awning: Manufacturer specifications are invaluable. They can not only provide the exact dimensions of the required parts but also indicate the material they are made from and any proprietary design features that might limit compatibility with generic parts.
  2. Measure the existing roller tube if possible. Dimensions should include length, diameter, and the profile of the slots or channels where the awning fabric attaches. A universal channel increases the potential for generic parts to fit.
  3. Examine the current winding mechanism: Is it a manual crank, or does it have an automated electronic motor? This determines whether you need a simple hand-crank replacement or a more complex motorized unit. For manual cranks, observe the connection points, as they must match the new roller tube. For motorized systems, note the electrical requirements and mounting dimensions.
  4. Explore retail options: Specialized awning or RV supply stores, online retailers, and sometimes hardware stores carry these components. Bring the specifications with you or have them ready when shopping online. OEM (Original Equipment Manufacturer) parts ensure compatibility, while aftermarket parts may offer a more economical solution but require careful comparison to ensure they fit.
  5. Consider custom solutions: If the awning is unique or out-of-production, custom fabrication might be necessary. Contact manufacturers who can create a bespoke roller tube or winding mechanism.
  6. Evaluate the installation process: Check if you can handle the installation or if professional services are recommended, especially for motorized systems.

In this process, it’s important to account for compatibility, as an incorrect fit can lead to malfunction or damage. Additionally, ensure you understand any warranty implications that might arise from using aftermarket parts.

Step 3: Wind the Torsion Springs Safely and Effectively

To wind the springs, insert the winding bar into the winding cone. Follow the manufacturer’s guidelines for the number of turns. Hold the bar firmly and wind the spring slowly, maintaining control at all times. Once wound, lock the spring in place according to instructions.

To better understand this, safe handling of springs, particularly those under tension or compression, requires an understanding of the mechanical stresses involved and the potential energy stored in the springs. Winding springs increase the stored energy and thus the danger if the energy is released unintentionally. Springs are typical in many mechanical systems, from clocks to industrial machinery.

Before winding a spring, whether a torsion spring, extension spring, or compression spring, specific considerations must be taken into account. The material of the spring, the amount of force involved, and the purpose of the spring winding are all important. Different types of springs will have different winding mechanisms.

With a torsion spring, which is designed to be twisted, it’s important to use the correct tools, such as winding bars that are properly sized for the spring in question. Overwinding can cause the spring to become brittle and fail, and incorrect handling can lead to sudden and dangerous releases of energy.

Overall, personal protective equipment (PPE) such as gloves and eye protection should be worn to protect against potential harm. It’s also crucial to understand the limits of the spring’s elasticity — its yield point — so as not to damage the spring or create a hazardous situation by winding it too far.

The procedure itself often entails slowly and incrementally winding the spring, securing it if needed (such as in the case of torsion springs which are used in garage door mechanisms), and always being mindful of the potential kinetic energy that could be released if the spring were to snap back to its resting state. Concerns such as metallurgical fatigue, where repeated use of the spring can lead to failure, should also be considered when winding springs, as should the lifecycle of the spring and any maintenance schedules.

Throughout the process, one should remain careful and focused, as complacency can lead to accidents. Following proper procedures and respecting the physics of the springs are paramount for safe and successful winding.

Step 4: Test the Awning for Proper Functioning

rv awning parts

After winding, carefully remove the winding bars and test the awning’s operation. It should retract and extend smoothly. If it doesn’t, review your steps to ensure everything was done correctly, making adjustments as needed.

However, when testing an awning to ensure it is functioning properly and safely, one must consider both the awning’s mechanical and structural integrity and the function of any electronic or motorized components, if applicable. A systematic approach should be taken for such testing to mitigate risks of damage to the awning or injury to persons involved.

Now, assuming no issues have been found so far, proceed to the functional test. For manual awnings, this involves slowly and gently deploying the awning according to the manufacturer’s instructions, paying attention to any unusual resistance or sounds that might suggest a problem. It’s advisable to have at least two people involved in this step for control and observation.

For motorized awnings, engage the motor using the control mechanism, which could be a remote control, wall-mounted switch, or an app, depending on the model. Carefully observe the awning as it deploys, ensuring that it moves smoothly without any signs of jerking or stalling.

At full extension, inspect the awning again. Ensure the fabric is taut and secure, and the frame is holding firm and not bending or buckling under tension. Take note of how the awning responds to light wind or pressure and ensure that any automatic sensors (e.g., wind sensors) are functioning if such features are integrated.

Finally, retract the awning using the appropriate method, watching for the same indicators of smooth operation as when deploying. Once retracted, check again for any signs of stress or damage that may have occurred during the test.

If problems are identified at any stage, stop the test immediately and consult with a professional for repair or maintenance. Continued testing of a compromised awning could be dangerous. Regular maintenance checks can help ensure that the awning remains safe to operate over time.

Easiest Way To Adjust &Amp; Re-Tension Rv Awning Springs Without Special Tools

Pro Tips for Expertly Winding Torsion Springs

Tip 1: Always Follow the Manufacturer’s Instructions

Each awning model may have unique requirements. Adhering to the manufacturer’s guidelines is crucial for safety and warranty purposes. These instructions provide the exact steps and number of turns needed for your specific awning. As many spring tensions are a little different, make sure to follow it for RVs.

Tip 2: Work Slowly and Carefully

Rushing through the winding process increases the risk of mistakes and injuries. Take your time and work methodically, double-checking each step. This careful approach will yield the best results and maintain the integrity of your awning.

Tip 3: Seek Professional Help if Unsure

If you’re ever unsure about any part of the process, it’s wise to consult a professional. They can provide guidance or even perform the task for you, ensuring it’s done safely and correctly.

A Simple Job: Dometic Power RV Awning Torsion Replacement

Conclusion

Winding the torsion springs on an RV awning is a precise task that, when done correctly, ensures the functionality and safety of your awning. By following this guide and its different steps, these technical tips and tricks will ensure you can safely awn.
