A Comprehensive Guide to Installing RV Window Insulation and Boosting Energy Efficiency

- Advertisement -

If you’re an enthusiast of recreational vehicles (RVs), you know how essential maintaining an optimal temperature inside your mobile home can be. From the scorching heat of summer to the chilling cold of winter, ensuring a comfortable living environment requires effective insulation, particularly for your windows, which are often overlooked but remain significant gateways for heat transfer. This comprehensive guide will take you through the process of insulating your RV windows, providing helpful tips on boosting energy efficiency throughout your vehicle.

Introduction

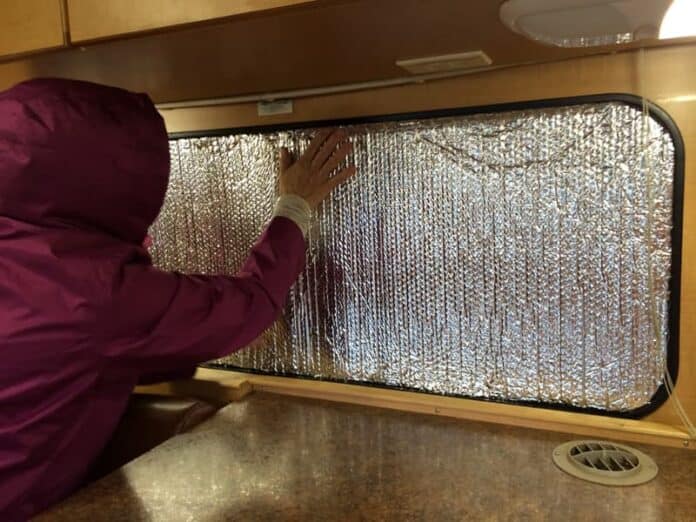

rv window insulation

Importance of RV window insulation and energy efficiency

RV window insulation is crucial in managing the temperature within a trailer or motorhome. Whether it’s the heat loss during winter or the influx of hot air in summer, poorly insulated windows can significantly affect the RV’s internal temperature. Energy efficiency comes into play here. By insulating your windows, you limit the need for extensive heating or cooling, thereby reducing energy consumption and saving on fuel costs.

By insulating your windows, you limit the need for extensive heating or cooling, thereby reducing energy consumption and saving on fuel costs.

Benefits of installing RV window insulation

Insulating your RV windows offers a myriad of benefits. Beyond energy savings, it increases comfort by maintaining a steady interior temperature. It reduces noise pollution from the outside, giving you peaceful nights in your mobile haven. Furthermore, RV window insulation also prevents condensation build-up on windows, thereby reducing the risk of mold growth and subsequent damage to your RV’s interiors.

Step 1: Gather the Necessary Tools and Materials

List of tools needed for installation

Before you start, ensure you have all the necessary tools for the job. You’ll need a measuring tape for accurate measurements, a pair of scissors for cutting the RV window insulation material, a marker for outlining measurements on the insulation, and a spray bottle filled with water to help adhere the insulation material to the windows.

For insulating your RV windows, you could use Insulated Window Films, Reflective Foil Insulation, or Thermal Curtains. The choice depends on your specific needs and budget. Insulated window films are relatively inexpensive and easy to install. Reflective foil insulation, while slightly more expensive, offers better insulation properties. Thermal curtains add an aesthetic touch while serving the purpose of insulation, but they may not provide as much insulation as the other options.

Additionally, you could also consider using window insulator kits, which typically include clear plastic film that can be applied to the windows and then sealed with heat to create an airtight barrier. This option is cost-effective and can provide good insulation. Ultimately, it’s important to consider your specific needs, budget, and preferences when choosing the best material for window insulation in your RV.

rv window insulation 4

Step 2: Measure and Prepare the Windows

Measuring the windows for accurate insulation

Start by measuring your windows accurately. Use measuring tape to measure the height and width of each window. Note down these measurements, as they will determine the amount of insulation material you need. Remember to add an extra inch or two to allow for errors during cutting.

Cleaning and preparing the windows for installation

Before installing the RV window insulation, ensure your windows are clean. Any dust or dirt can interfere with the adhesion process. Use a window cleaner and a lint-free cloth to thoroughly clean the glass. Let it dry completely before proceeding to the next step.

Winterize Your Rv | Reflectix Window Covers

Step 3: Install the Window Insulation

Different methods of installing window insulation

The method of installing RV window insulation varies depending on the type of insulation material. For Insulated Window Films, you’d begin by spraying water onto the glass. Then, carefully apply the film, smoothing out any bubbles with a squeegee. For Reflective Foil Insulation, you would cut the material according to your measurements and simply press it against the glass. Thermal curtains can be hung like regular curtains, but ensure they are close to the window for maximum insulation.

Step-by-step instructions for each method

Regardless of the RV window insulation method you choose, the first step is always to measure and cut your insulation material based on the dimensions of your windows.

For Insulated Window Films, after cutting, spray some water on the window, then apply the film starting from the top and working your way down. Use a squeegee to remove air pockets and ensure a firm adhesion.

For Reflective Foil Insulation, stick the cut foil onto the window using double-sided tape.

If you opt for Thermal Curtains, install them as you would normal curtains, ensuring they touch the windowpane for better insulation.

Step 4: Seal Any Gaps and Drafts

Identifying and sealing gaps and drafts in the RV

Gaps and drafts in your RV are potential avenues for heat loss. To identify these, light an incense stick and move it around the windows and doors. Wherever the smoke wavers, there’s a draft. Once identified, use weather stripping or caulking to seal these gaps effectively.

We recommend using silicone-based sealants as they are waterproof and resistant to temperature fluctuations. Apply the sealant along the gaps and smooth it out with a caulking tool or a flat piece of plastic. Leave it to dry thoroughly before testing again for drafts.

Additional Tips to Improve Energy Efficiency in Your RV

rv window insulation

Double Pane Windows

Consider upgrading to double-pane windows. These consist of two layers of glass with an insulating gas between them, significantly reducing heat transfer and noise infiltration.

Insulating other areas of the RV

Don’t limit your insulation efforts to the windows. The roof, floor, and walls of your RV also contribute to heat loss. Using foam insulation boards or spray foam insulation can help maintain a consistent interior temperature.

RV Skirting

Skirting your RV, especially during winter, can help prevent cold air from getting under your vehicle and causing heat loss. You can use vinyl skirting or insulated foam boards for this purpose.

Efficient AC/Heating Systems

Ensure your heating and cooling systems are running efficiently. Regular maintenance checks, cleaning air filters, and sealing duct leaks can improve their performance and thereby increase energy efficiency.

This Replaces Ugly Foil Rv Window Insulation (Full Diy Build)

Conclusion

Insulating your RV windows is a worthwhile investment for enhanced comfort and cost savings. Although the process might require time and effort, the benefits you reap make it undoubtedly worthwhile. Remember, the key to a successful RV window insulation project lies in meticulous preparation, careful installation, and regular maintenance.

Insulating your RV windows is a worthwhile investment for enhanced comfort and cost savings.

FAQ

What are the benefits of RV window insulation?

The benefits of RV window insulation include improved thermal efficiency, reduced heat loss or gain, enhanced comfort, energy savings, and potential soundproofing.

How can I effectively use RV window insulation to improve thermal efficiency?

Consider implementing several strategies to enhance the insulation and temperature regulation in your RV. Begin by using reflective materials such as Reflectix or bubble wrap on your windows, positioned from the inside to leverage their heat radiation reflection properties, thereby minimizing heat transfer.
Additionally, install thermal curtains or blinds specifically designed for RVs, incorporating insulating layers to regulate temperature and curtail heat loss. Apply window insulation film for an extra transparent layer that mitigates drafts and minimizes heat transfer. Conduct a thorough inspection for any gaps or leaks around your RV windows, sealing them with weatherstripping tape or foam to prevent air infiltration and enhance overall insulation. Opt for cellular shades or honeycomb blinds, featuring a cellular structure that traps air and provides superior insulation, thus reducing heat loss. Finally, explore the option of custom-made RV window inserts crafted from insulating materials like foam board, fitting securely into your windows to create an additional barrier against temperature fluctuations.

What materials are commonly used for RV window insulation?

Commonly used materials for RV window insulation include Reflectix, bubble wrap, thermal curtains, window insulation film, weatherstripping tape or foam, cellular shades or honeycomb blinds, and foam board.

Are there specific techniques for reducing heat loss in my RV?

To reduce heat loss in your RV, focus on sealing any gaps or leaks around windows and doors. To create a barrier against heat transfer, utilize multiple layers of insulation, such as reflective covers, thermal curtains, and window films.

Can proper insulation help with soundproofing in an RV?

Proper RV window insulation can contribute to soundproofing in your RV by reducing external noise penetration. The extra layers of insulation help to absorb and block sound waves, enhancing the overall acoustic environment.

Are there any DIY methods for improving RV thermal efficiency through RV window insulation?

There are several DIY methods for improving RV thermal efficiency through window insulation. You can create custom window covers using Reflectix or bubble wrap, install thermal curtains or blinds, apply window insulation film, seal gaps with weatherstripping tape or foam, and make your own window inserts using foam board. These methods are cost-effective and relatively easy to implement.

Can I use bubble wrap for window insulation?

Yes, bubble wrap can be used as a DIY window insulation option. It provides a layer of air pockets that act as an insulator. Simply cut the bubble wrap to fit your window, spray some water on the glass, and press the bubble wrap against it. However, keep in mind that bubble wrap is not as effective as other insulation materials and may need to be replaced more frequently.
